The ViewLux VLX 100 Swing / Entry Door delivers something Dallas homeowners rarely find in a single product: a genuinely slim aluminum frame that still locks up like a vault. We’re Westlight Windows Dallas, an authorized ViewLux installation partner, and we’ve put these doors into homes from Lakewood to Frisco. The profile is only 2.56 inches wide, which means more glass and less metal – a clean, modern front entry that holds its line through every Dallas heat wave and spring storm season. If you’re researching a replacement entry door or planning a new build, call us at (361) 441-0865 to talk specs, lead times, and an installed price. Estimates are free.

Call (361) 441-0865

Product Overview – VLX 100 Swing / Entry Door

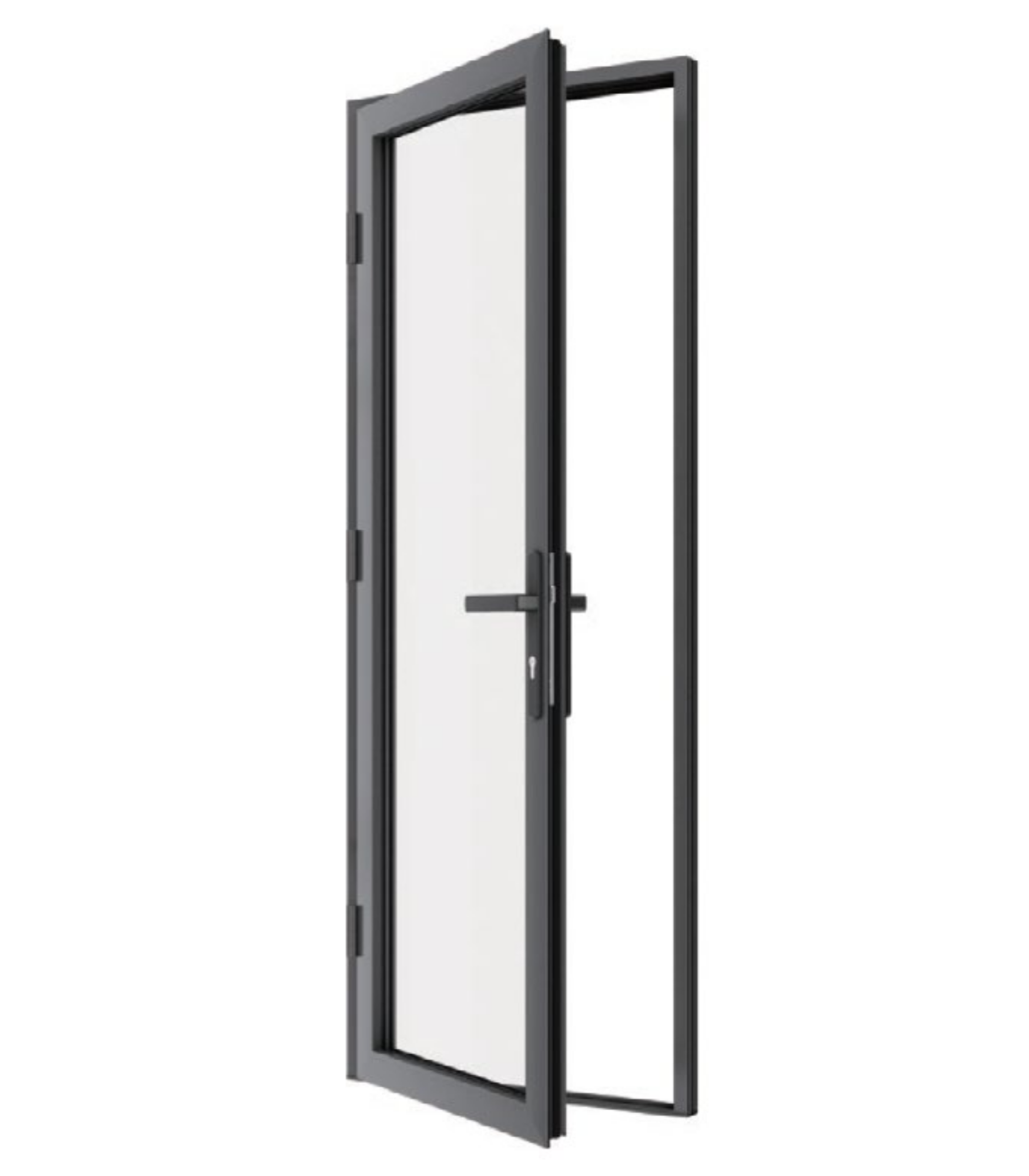

The VLX 100 is a single-entry aluminum swing door built around one idea: thin sightlines, serious engineering underneath. Where a typical entry door uses a wide frame to carry the weight of daily use, the VLX 100 pushes the frame down to 2.56 inches. The tradeoff works because the wall thickness runs 0.098 inches – heavy enough gauge aluminum to resist racking, sagging, and the kind of frame flex that eventually causes door slabs to drag on the threshold. It’s a minimalist profile with multi-point locking hardware, so the door secures at the top, middle, and bottom of the jamb rather than just a single latch.

Who’s this door for? Dallas homeowners who want a modern or contemporary entry without buying a full custom steel door system. People replacing a dated front door in East Dallas. Developers putting matching entries on townhomes in Bishop Arts or Deep Ellum. Anyone who wants the thermal performance of a real aluminum door with thermal break technology, not a vinyl door pretending to look modern. We see it specified for single entries up to 48 inches wide, which covers most residential applications in Dallas without needing a custom oversize frame. The swing door configuration keeps it simple: hinged operation, familiar to everyone, no sliding tracks to clean or rollers to replace.

ViewLux manufactures the VLX 100. We install it. That distinction matters because an authorized partner has to meet installation standards the manufacturer actually enforces. If a door gets slapped into an out-of-square opening, the multi-point lock binds, the weather seal gaps, and the homeowner eats the repair cost. As an authorized installation partner, Westlight Windows Dallas sets it level, plumb, and square per the manufacturer’s spec, then seals it per AAMA standards. That’s what keeps a warranty a warranty in Dallas, Texas.

Technical Specifications

Here’s what the VLX 100 brings to the table in raw numbers, along with the options you can choose from. We’ve kept this plain – these are the numbers you’ll want when comparing doors.

• Frame profile width: 2.56 inches – a thin aluminum frame that keeps the glass prominent, not the frame.
• Aluminum wall thickness: 0.098 inches – heavy gauge for strength and straightness over decades of Texas thermal cycling.
• Maximum panel span: up to 48 inches wide – wide enough for modern single entries in Dallas homes and condos.
• Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood.
• Screen option: Retractable screen available, or no screen for maximum minimalism.

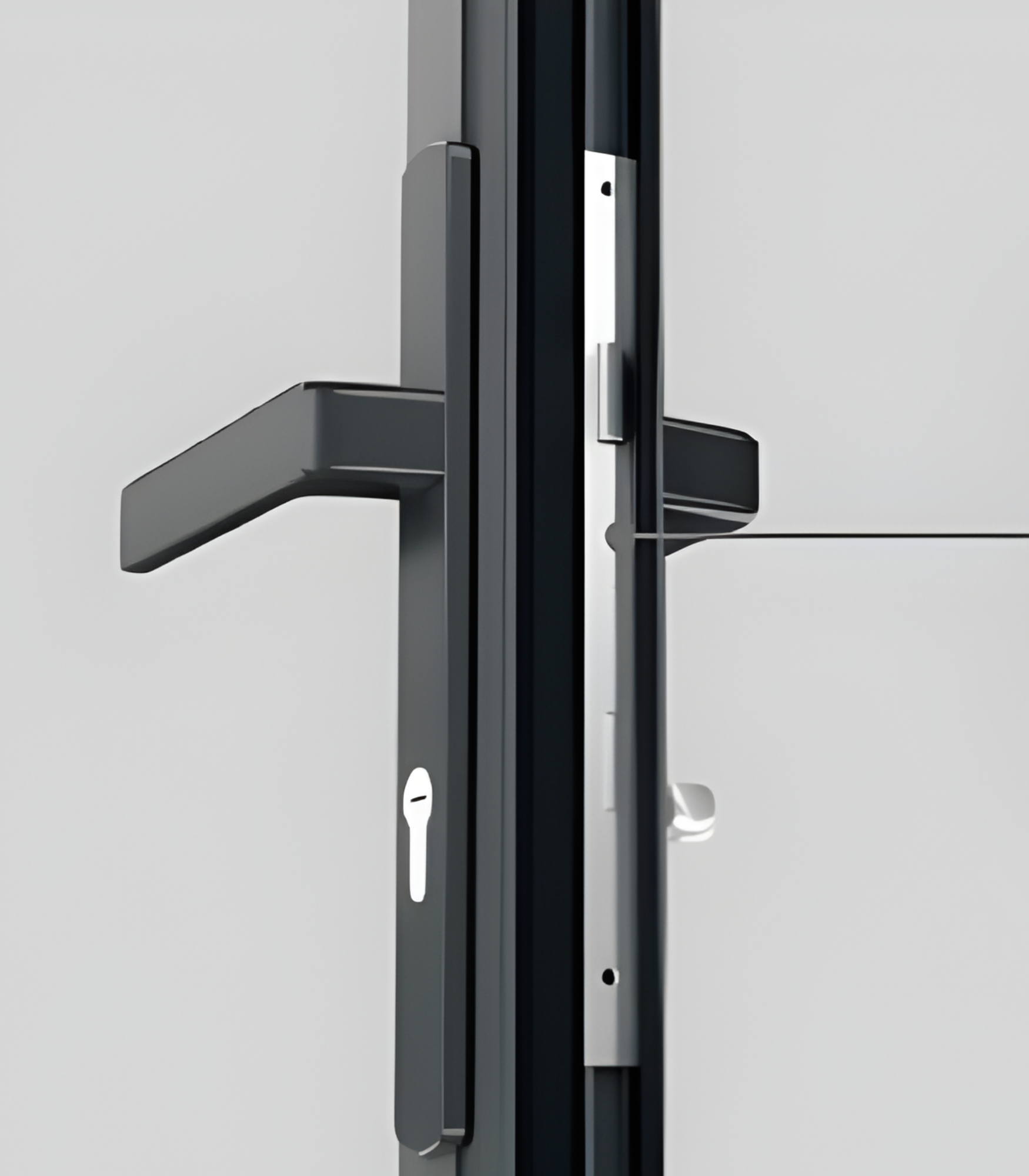

• Locking: Multi-point lock engaging high, low, and central lock points on a single throw of the handle.
• Thermal performance: Thermal break technology with NFRC-rated energy performance.
• Glass performance: Laminated impact-resistant option with wind-load rating suited to Dallas storm requirements.

Performance Features

Thermal Efficiency – Aluminum conducts temperature. That’s why a cheap aluminum door feels cold in a Dallas January and hot by a Dallas August afternoon. The VLX 100 uses a thermal break – a non-conductive barrier that separates the interior and exterior frame halves, cutting heat transfer. We order Low-E glass on most Dallas installs to keep solar heat gain manageable and keep your HVAC from working overtime.

Acoustic Performance – If you live within earshot of 75, the tollway, the DART rail, or Love Field flight paths, sound rating matters. A 0.098-inch aluminum frame holding laminated glass performs far better at blocking outside noise than a hollow builder-grade door. The multi-point lock compresses the weather seals consistently around all four sides, which is as much about sound as it is about air.

Airtightness & Weather Seal – The VLX 100 seals on all four sides with compression gaskets, not just a sweep at the bottom. When we install it in Dallas, we run AAMA 812 low-expansion foam sealant around the entire perimeter joint before trim. That matters during Dallas wind-driven rain events, where air leaks become water leaks fast. Airtight also means no dust blow-in from dry Texas summer winds.

Waterproofing – Dallas sees over 38 inches of rain in a normal year, often in short, violent bursts. The VLX 100 includes a sill design intended to direct water away from the interior rather than toward it. Pair that with proper perimeter flashing and installation by Westlight Windows Dallas, and the door drains the way it should – to the outside, not under your flooring. We also prefer laminated or tempered glass on entry doors subject to wind-borne debris in the North Texas spring storm corridor.

Wind Resistance – Tornado season in Dallas means building products here need to handle more than calm days. The VLX 100 is wind-load rated for our local climate zone, and the impact-resistant laminated glass option gives you a door that meets stricter standards if you’re in an area with wind-borne debris concerns. The 0.098-inch wall thickness means the frame itself resists deflection better than thinner extruded aluminum on the market.

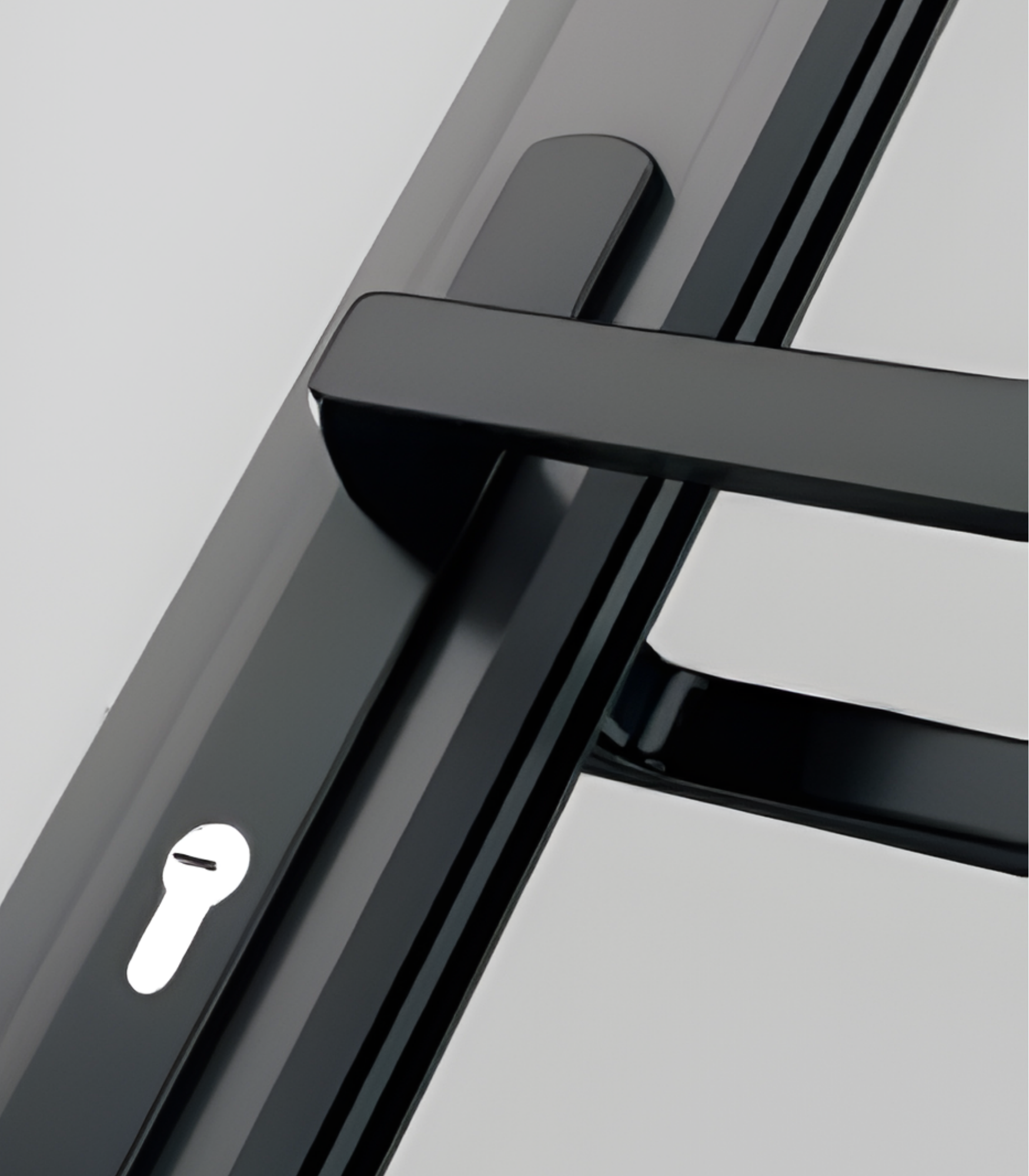

Security & Hardware – A single deadbolt engages one point. The VLX 100’s multi-point system throws bolts at the top, middle, and bottom of the door with one handle turn. The frame is 2.56 inches of thick wall aluminum, not soft wood. Laminated glass, when selected, holds together as a sheet rather than shattering into entry-ready shards. Combined, that’s the best security feature on any door we install in Dallas.

Color & Glass Options

The VLX 100 comes in six finish options, and we’ve seen how each one actually reads on Dallas homes. Premium Black is the most requested finish in Dallas right now – it punctuates white brick or painted brick, and pairs with black-framed windows for a coherent modern look. Pure White suits traditional Dallas Georgians or clean coastal-inspired new builds. Anodized Silver gives that true architectural aluminum appearance, common on Dallas mid-century moderns. Bronze matches the dark window frames you see all over 1970s and 1980s North Dallas homes. Champagne provides a warmer metallic tone that blends with limestone and travertine entry accents. Teak Wood finish approximates a wood front door without the rot, warp, and repainting cycle we see on Dallas wood doors exposed to intense sun.

For glass, the choice comes down to privacy, light, and climate. Clear maximizes light and visibility on covered or shaded entries. Frosted and Obscure provide privacy while still letting daylight through – common for Dallas front entries where the door faces the street directly. Low-E is our default recommendation for Dallas-facing doors that bake under the Texas sun; it reduces heat gain while preserving views. Tempered glass is code-required in many door applications because it breaks into safer fragments. Laminated adds impact resistance and security value – it stays in the frame under impact, which is worth considering in Dallas hail season.

Installation by Westlight Windows Dallas in Dallas

Here’s the uncomfortable truth about high-performance doors: an improperly installed VLX 100 is worse than a cheaper door installed correctly. The multi-point lock will bind if the door isn’t set plumb. The weather seals will gap if the frame gets racked. The warranty becomes paper. That’s why we handle every installation ourselves, by our own crew, under our own control. Westlight Windows Dallas has installed doors across Dallas – Plano, Richardson, Carrollton, Mesquite, Garland, Oak Cliff, the Park Cities – and we follow the same process on every job.

We start with a pre-installation inspection of the opening. We check the rough opening dimensions, look for rot or structural issues in the framing, and verify the substrate can support the door properly. Then we set the frame level, plumb, and square – that’s not a tagline, it’s the baseline for everything else. We shim and fasten per the manufacturer’s specifications for this door, which keeps the frame from torquing when the door swings closed on a windy Dallas day. After the door is set, we insulate the perimeter joint with AAMA 812 low-expansion foam sealant, then seal and flash per AAMA 2400/2410 standards. We run a final water test where we simulate rainfall against the door assembly before we call the job done, and we leave a written check line-item quote, not a handshake price.

One Dallas-specific note: our freeze-thaw cycles and wide temperature swings put real stress on door seals and anchor points. Products rated for mild climates fail here inside a decade. The VLX 100’s thermal break matters, but only if it’s installed to drain and dry properly. A poor install in Dallas traps moisture inside the frame, where it freezes in a hard January and expands. Done right, the system handles North Texas weather without issue. That’s what you’re paying us for.

Frequently Asked Questions – VLX 100 Swing / Entry Door

What is the lead time for the VLX 100 Swing / Entry Door? Expect roughly 4 to 6 weeks from order to delivery for the VLX 100 Swing / Entry Door in Dallas, depending on glass selection, finish availability, and ViewLux’s production schedule at the time we order. Custom sizes and laminated impact glass can push that toward the longer end. We give you a written lead time at the time of your quote, and we don’t start the order until you approve the quote and pay for materials. Call (361) 441-0865 to get a current date estimate for the finish and glass pack you want.

Does the VLX 100 Swing / Entry Door qualify for energy tax credits? The VLX 100 with Low-E or laminated Low-E glass may qualify for federal energy-efficiency tax credits for exterior doors, provided the product meets current ENERGY STAR criteria for the South-Central climate zone that includes Dallas. Whether your specific configuration qualifies depends on the glass pack, U-factor, and solar heat gain coefficient. We can help you check your exact configuration against current IRS requirements when we quote the job. Call (361) 441-0865 and we will run the numbers for you.

What warranty comes with the VLX 100 Swing / Entry Door? ViewLux provides the manufacturer’s warranty on the door itself, which covers frame, glass, and hardware defects under normal residential use in Dallas. The installation is also warranted by Westlight Windows Dallas. The key requirement on your side: the door must be installed by an authorized partner using proper procedures, or the manufacturer can deny a future claim. We install it per the manufacturer’s requirements and stand behind our work. Ask us for a written copy of warranty terms when you get your quote – call (361) 441-0865.

Can I customize the size of the VLX 100 Swing / Entry Door? The VLX 100 supports panel spans up to 48 inches wide, which covers most standard Dallas entry openings. Within that range, we can order custom width and height configurations to fit your specific rough opening, including non-standard heights for older Dallas homes in neighborhoods like Lakewood or M Streets where original openings were not built to modern module sizes. If your opening exceeds 48 inches, we’ll talk through options: a wider opening may require a different ViewLux configuration or a side lite. Call (361) 441-0865 to confirm your dimensions and get an exact installed quote.

How do I maintain aluminum frames on the VLX 100 Swing / Entry Door? Maintenance is minimal: wash the frame and glass with mild soap and water two or three times a year, and keep the bottom track area or sill clear of dirt, leaves, and debris that can block drainage. In Dallas, the bigger maintenance item is sealant at the perimeter – inspect it seasonally and reseal when it cracks or pulls away so water stays outside. We can also do an annual checkup on your door if you want us to look at seals, alignment, and hardware. Call (361) 441-0865 to book a service visit in Dallas.

Get a Quote – VLX 100 Swing / Entry Door in Dallas

If you’re in Dallas and considering the VLX 100 Swing / Entry Door for your entry, let’s get you a real number. We’ll measure your opening, talk through glass and finish choices, and give you a written quote that won’t shift once work starts. Call Westlight Windows Dallas at (361) 441-0865 to schedule a free on-site measurement, or ask us to start a project file with your phone number and preferred finish. The estimate is free; the right door for a Dallas front entry is worth the call.
