VLX 150 Heavy-Duty Sliding Door

VLX 150 Heavy-Duty Sliding Door in Dallas, TX | Westlight Windows Dallas

The VLX 150 Heavy-Duty Sliding Door is a strength-first aluminum slider built for wide openings, heavy glass, and decades of daily use. Homeowners across Dallas choose it for walls of glass that open to patios, pools, and backyard living spaces, and architects spec it when standard residential sliders simply are not enough. As an authorized ViewLux installation partner, Westlight Windows Dallas supplies, installs, and stands behind this door with the manufacturer’s full warranty intact, installed by a crew that specializes in large-format aluminum systems. Call (361) 441-0865 to talk through your opening size, glass package, and a free project estimate.

Call (361) 441-0865

Product Overview – VLX 150 Heavy-Duty Sliding Door

The VLX 150 exists because homeowners kept asking for the same thing: a sliding door that could handle a truly wide opening without sagging, sticking, or leaking. Most residential sliders top out around 8 or 10 feet per panel. The VLX 150 Heavy-Duty Sliding Door stretches that dramatically, with a maximum span up to 24 feet wide when configured with multiple panels. That is not a marketing claim, it is an engineering reality built into the frame’s 0.118-inch wall thickness and 2.95-inch profile depth.

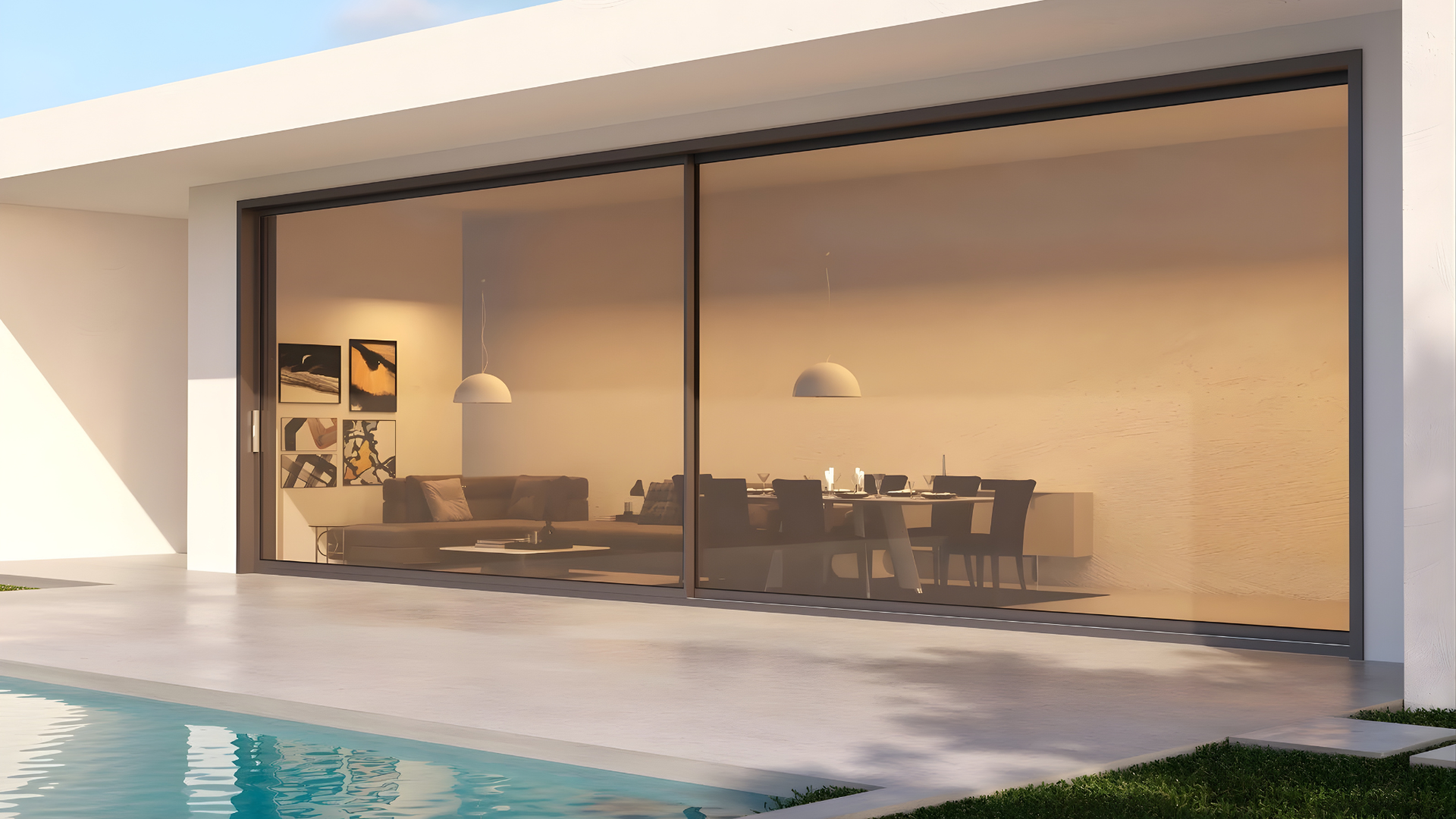

In Dallas, where indoor-outdoor living is practically a lifestyle, this kind of span matters. It means you can open an entire living room wall to the pool deck without a fixed post breaking the sightline. It means a dining room can flow onto a covered patio in one continuous plane of glass and aluminum. The hardware is stainless steel throughout, chosen for corrosion resistance in our climate, where humidity and summer heat put cheap rollers and tracks to the test. The VLX 150 comes in 2-track, 3-track, and 4-track configurations, so panels stack in the direction that best fits your floor plan, whether you want a center-opening design or an all-stack-to-one-side layout.

We recommend this series to Dallas homeowners who are replacing an old patio slider that has failed, or who are building a new opening where wide glass is the whole point of the wall. It is also the right choice for multi-panel wall systems on covered patios, sunrooms, and even light commercial storefronts in the Dallas area.

Technical Specifications

Here is the VLX 150 Heavy-Duty Sliding Door spec sheet, reworded from the manufacturer data we work with daily on Dallas installations:

• Frame wall thickness: 0.118 inches. Heavier gauge than standard residential aluminum, which is why this series handles larger glass and longer spans without bowing.
• Profile depth: 2.95 inches. A deeper profile means more structural rigidity, better thermal break placement, and cleaner sightlines when panels stack.
• Maximum span: Up to 24 feet wide across a single opening, depending on panel count and glass weight.

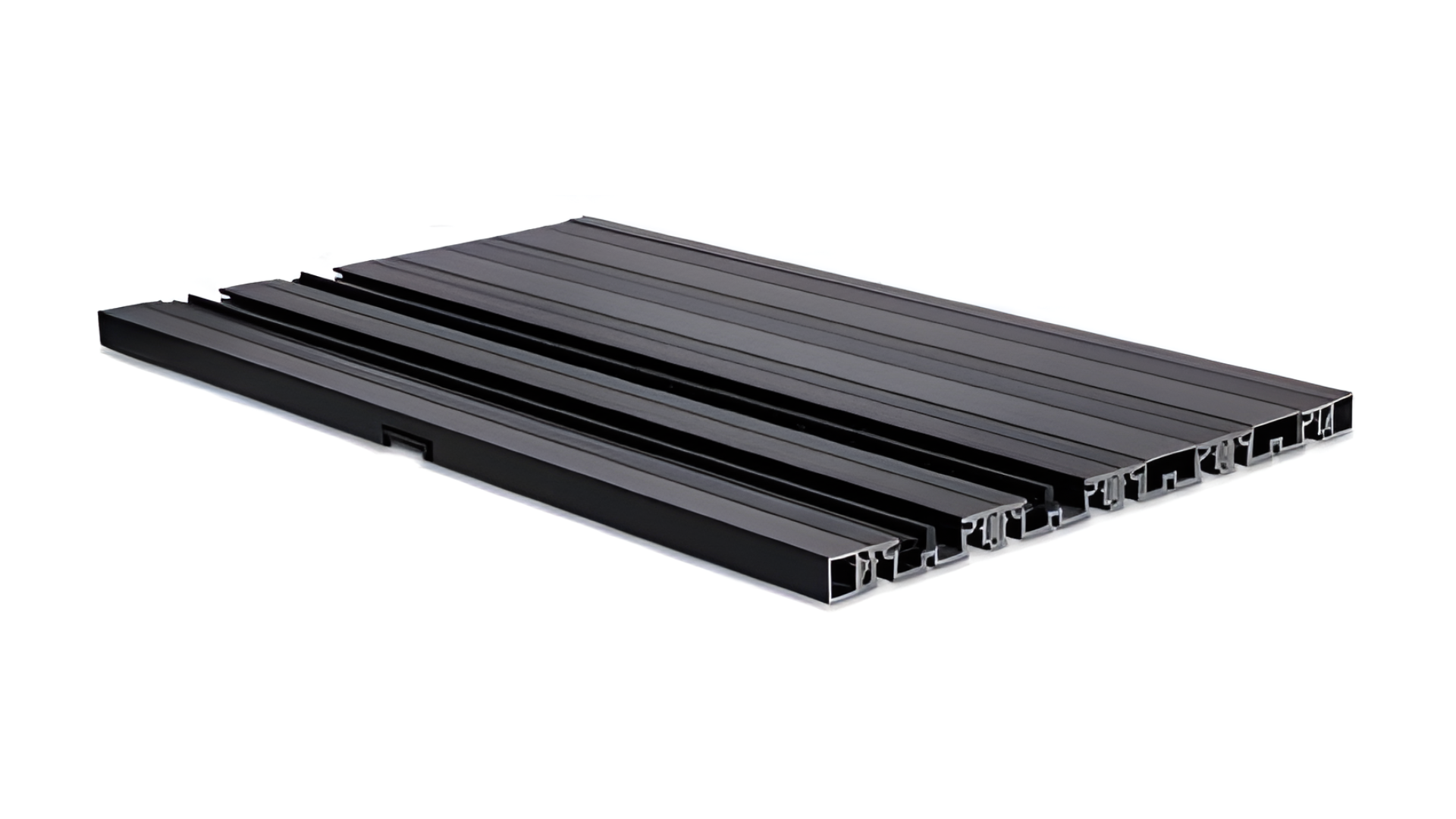

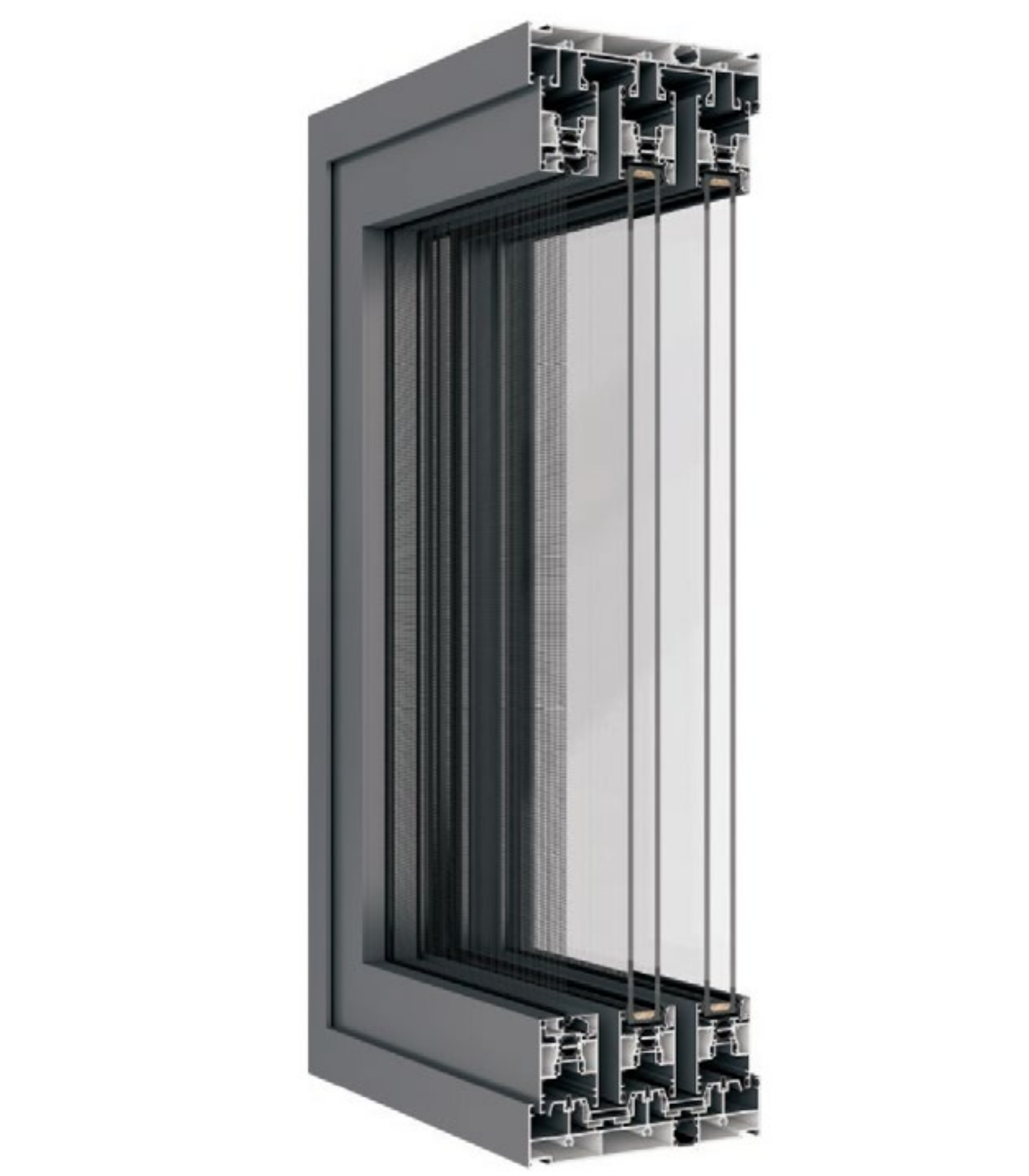

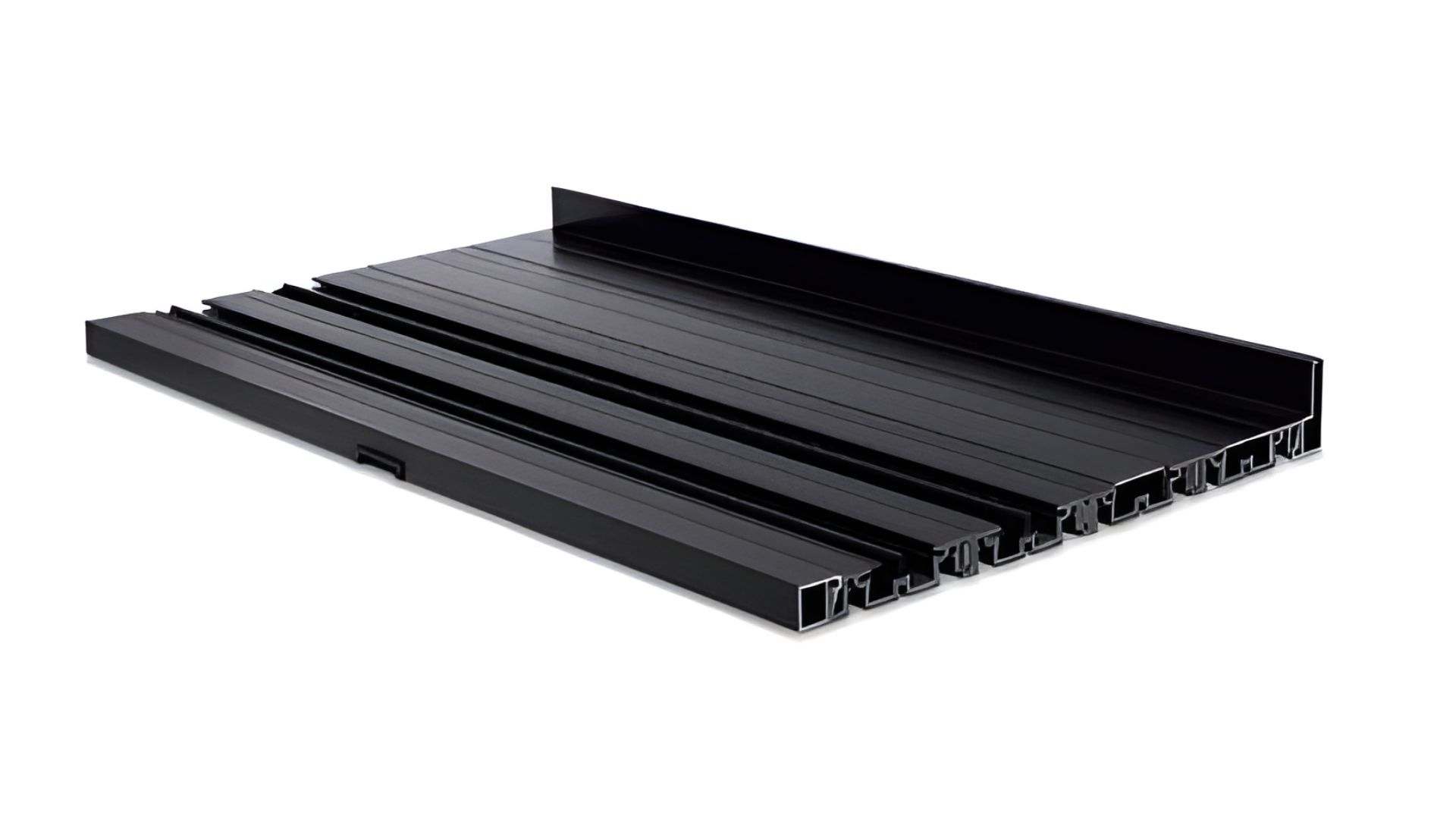

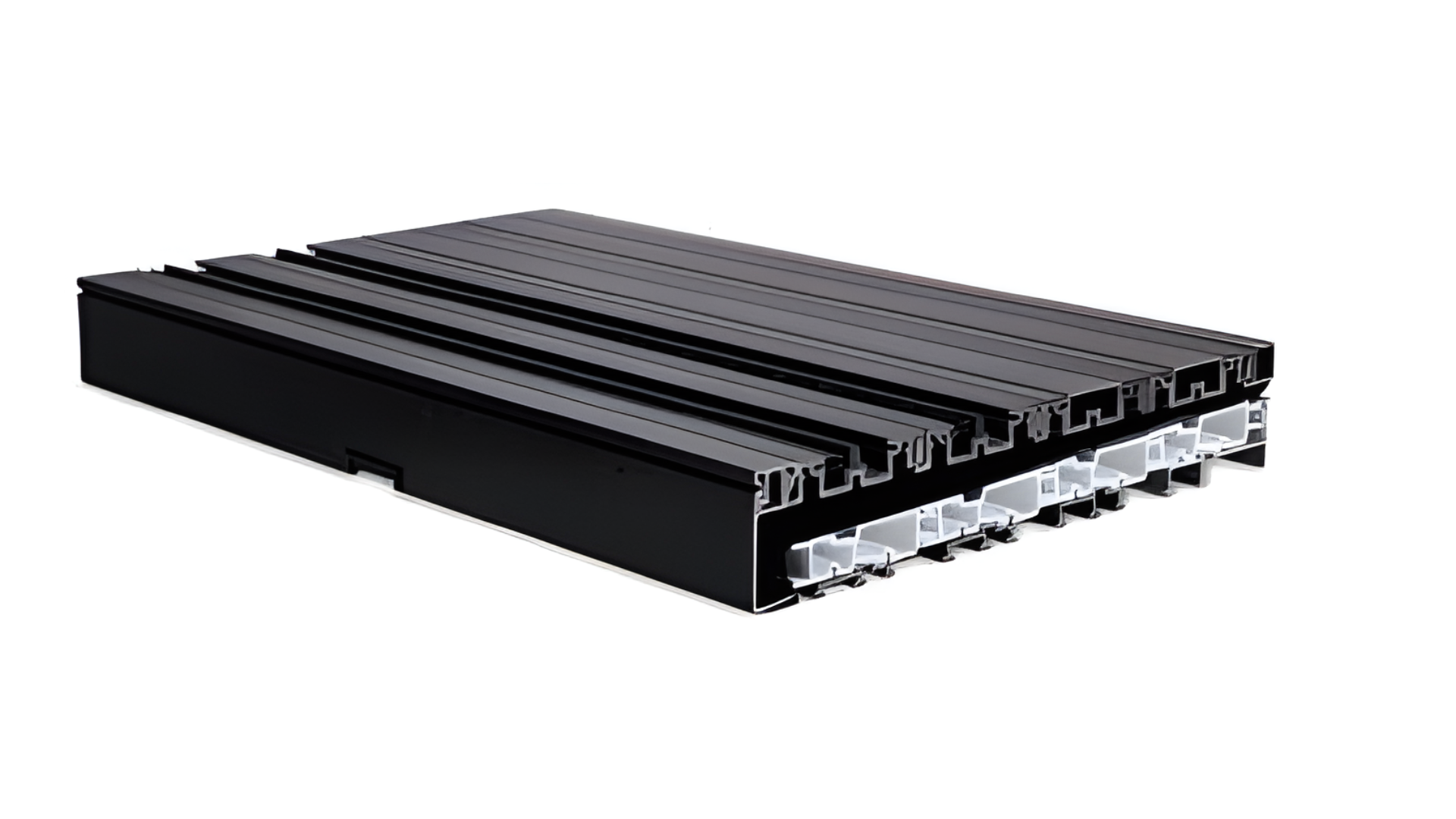

• Track configurations: 2-track, 3-track, and 4-track options. More tracks means more panels can stack, reducing the width each panel occupies when open.
• Glass options: Clear, Low-E, Tempered, Laminated, Gray Tint, and Black Tint. Low-E is the standard for Dallas energy performance, and laminated is the pick for impact resistance.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood. Powder-coated finishes carry a long color-hold lifespan even under Texas UV.
• Screen options: Retractable screen or sliding screen, both configured to match the track layout.

Performance standards: NFRC-rated thermal break technology, installed to AAMA 2400/2410 standards with AAMA 812 low-expansion foam sealant on the perimeter.

For a detailed quote on your exact panel count, glass package, and finish, call (361) 441-0865, and we will send a line-item proposal.

Performance Features

Thermal Efficiency

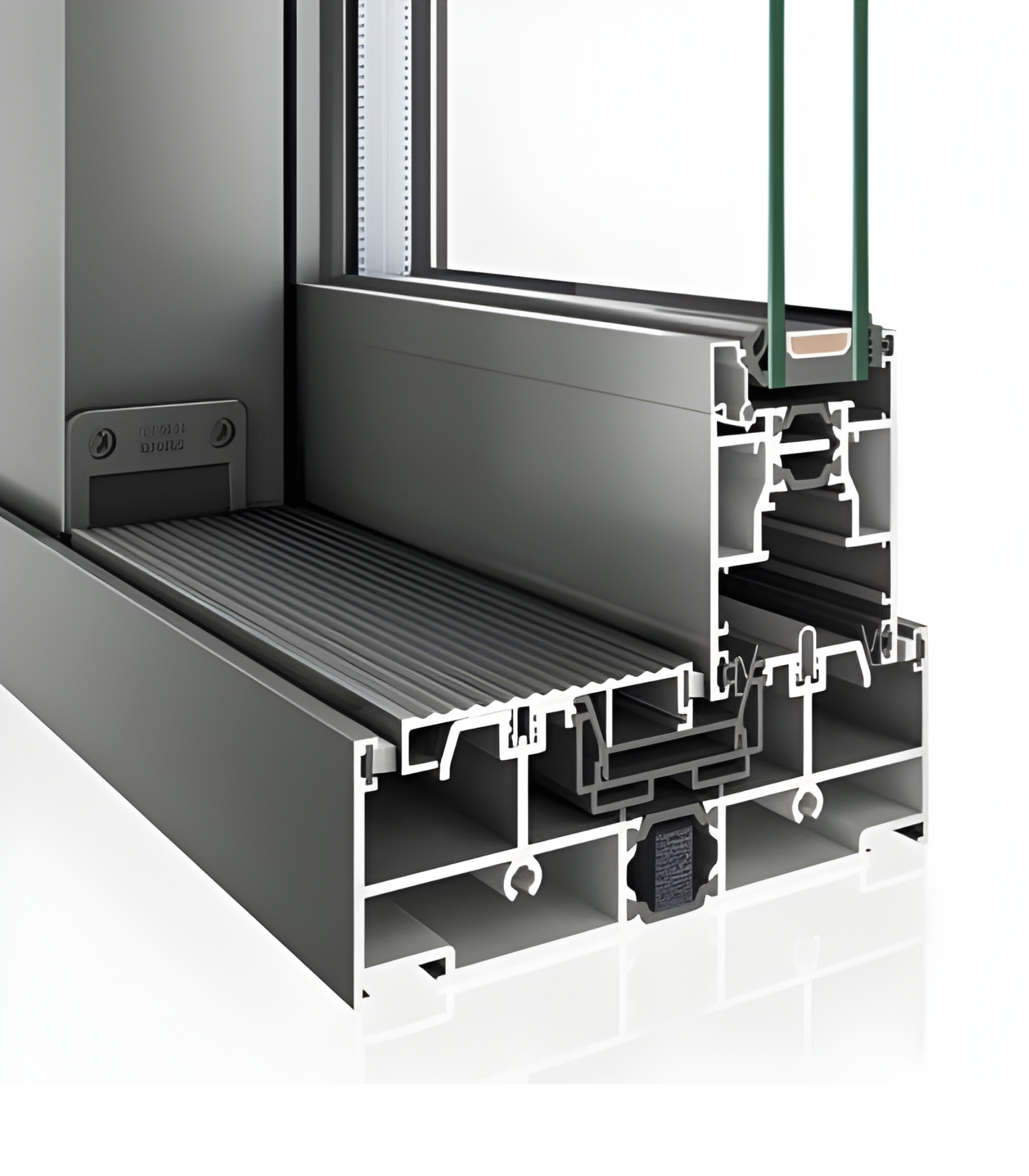

The VLX 150 carries a true thermal break inside the frame profile, not a superficial gasket. That separation between interior and exterior aluminum stops heat from migrating through the frame itself, which matters in Dallas summers when the metal on a west-facing wall can hit 150 degrees. Paired with Low-E glass, the result is a genuinely NFRC-rated energy performance package, not a guess.

Acoustic Performance

Dallas is loud. Traffic on the Tollway, trains, sirens, neighbors. The VLX 150’s dense frame and dual-pane glass options, especially laminated, cut noticeable exterior noise. Laminated glass is the single best upgrade a Dallas homeowner can make for sound control, and the 150 series is designed to carry it without hardware strain.

Airtightness & Weather Seal

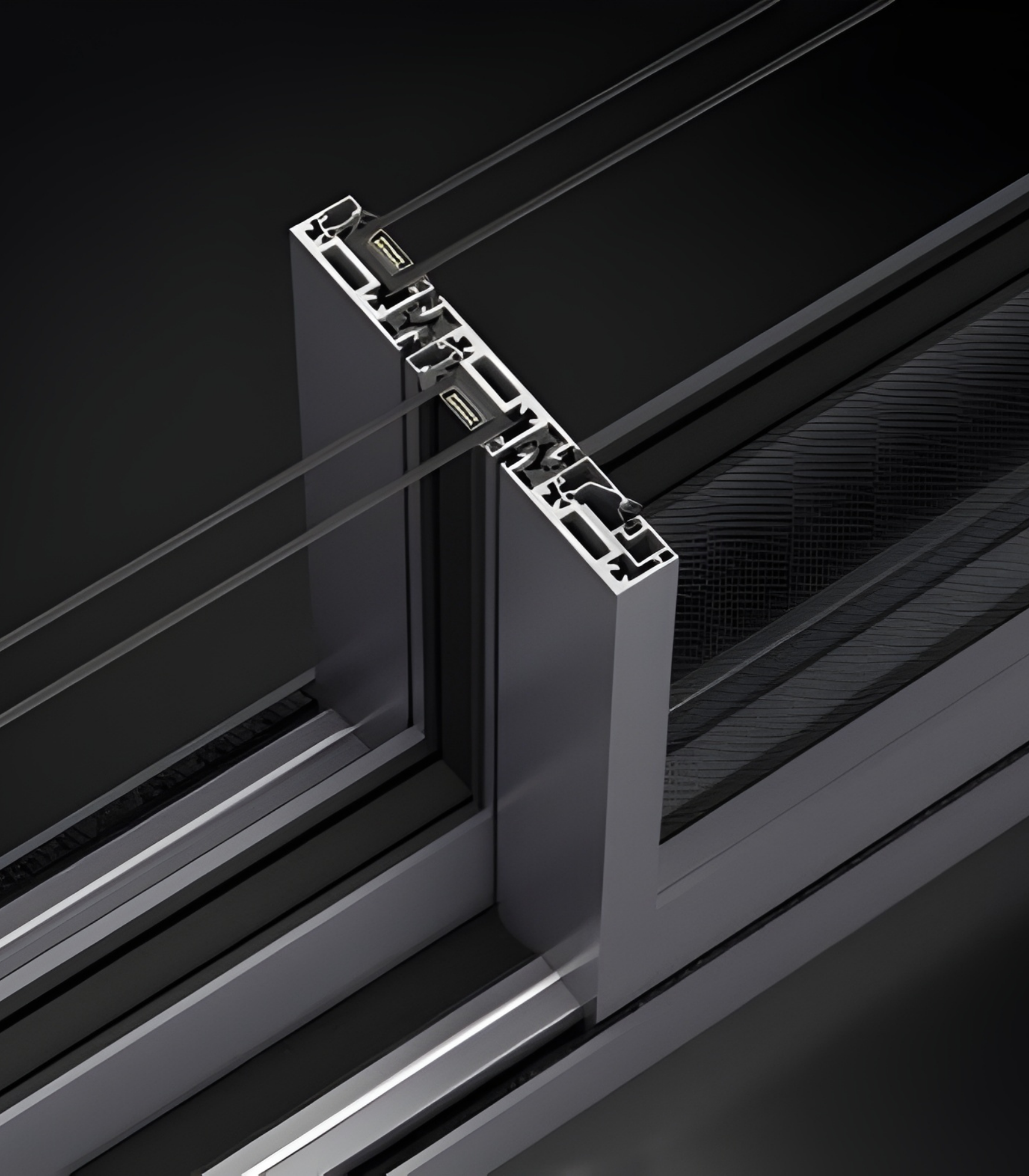

The interlocking panels and perimeter gasketing on the VLX 150 meet industry air infiltration standards that cheap sliders simply do not. On a windy Dallas spring day, you should not feel air moving through a closed door, and we set each panel to close tight against its seals during installation.

Waterproofing

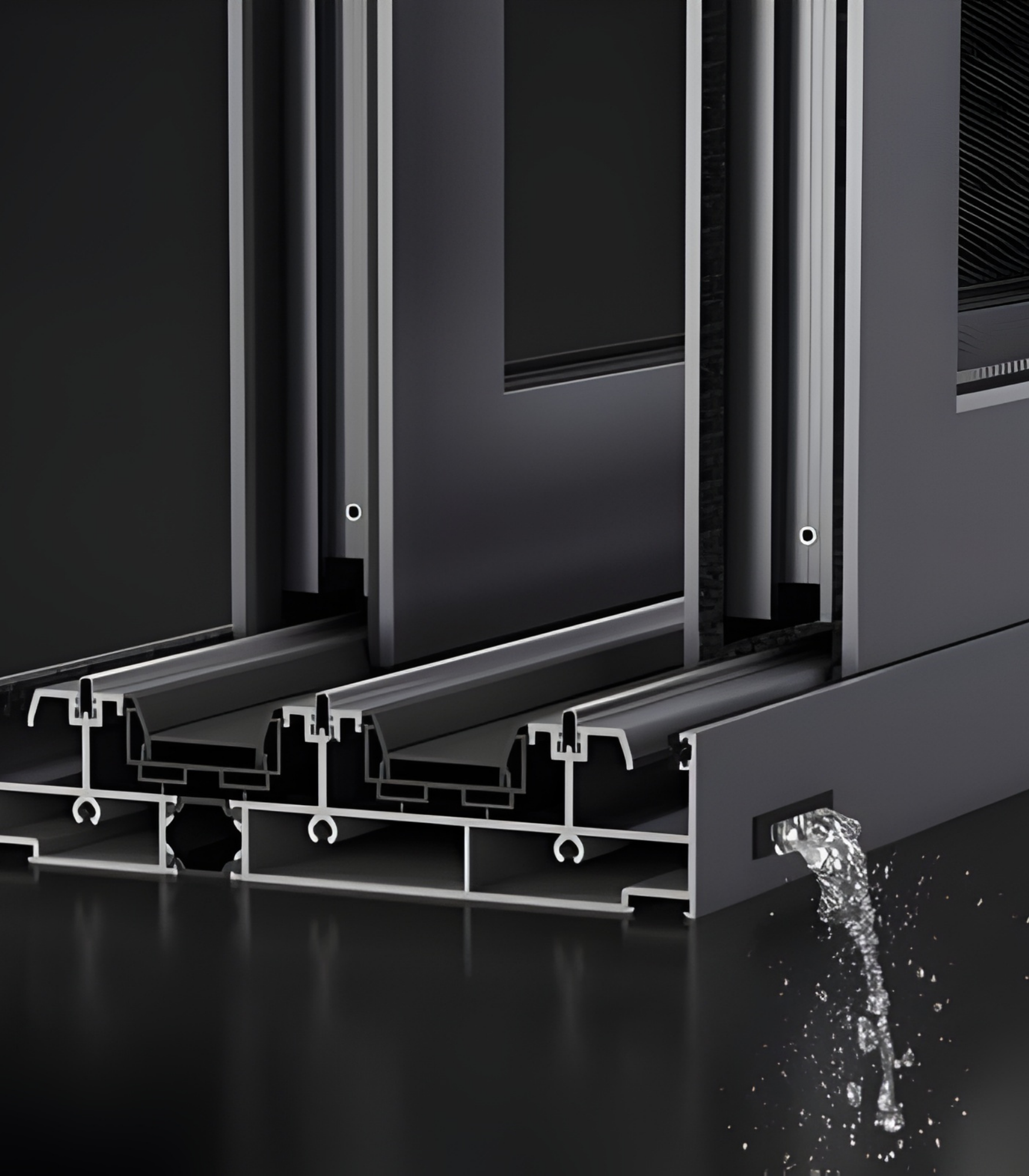

The track design on this series includes a sloped sill with weep drainage so rainwater that hits the door exits outward instead of pooling against the interior. Combined with AAMA 812 low-expansion foam sealant around the frame perimeter, the system is built to keep wind-driven rain out, which is exactly what Dallas storms throw at exterior doors.

Wind Resistance

North Texas sees real wind, from March squall lines to severe thunderstorm outflow. The VLX 150’s thick-wall aluminum frame and heavy-duty rollers are engineered for the wind-load capacity required on large openings. Impact-resistant laminated glass is available as an option for homes that want the strongest possible panel against windborne debris.

Security & Hardware

Stainless steel rollers, stainless handles, and a multi-point locking option mean this door is not the weak point of your perimeter. The 0.118-inch wall thickness makes the frame hard to pry, and the locking hardware sits in machined aluminum, not plastic clips. In Dallas, where sliding doors are a common entry point for burglary attempts, that inherent strength matters.

Color & Glass Options

The VLX 150 Heavy-Duty Sliding Door comes in six finishes, and each one solves a different Dallas design problem. Premium Black is the most requested finish we sell right now; it frames the glass like a picture window and fits the contemporary Dallas farmhouse and modern builds going up across East Dallas and Lake Highlands. Pure White is the clean choice for traditional exteriors, matching white trim without ever looking plastic. Anodized Silver is the no-frills commercial look, still common on mid-century homes in North Dallas and Richardson. Bronze is our recommendation for brick-heavy exteriors, a warm dark tone that settles into red and tan brick facades. Champagne is warm and light, a good bridge for transitional homes. Teak Wood is a powder-coated wood-look finish that gives warmth without the maintenance of real wood, a popular choice for covered porches in the Park Cities.

On glass, Clear is the baseline, but in Dallas we almost always steer clients to Low-E for HVAC savings and UV protection on furniture and floors. Tempered is standard for safety glazing near doors, per code. Laminated adds impact resistance and serious sound deadening. Gray Tint and Black Tint are aesthetic and heat-reduction choices for direct sun exposures where you want visible shade.

Installation by Westlight Windows Dallas in Dallas

Here is what most people do not realize about a sliding door this size: the installation is just as important as the door itself. A 24-foot, three-panel heavy-duty slider that is installed a quarter-inch out of level will never roll right, never seal correctly, and will eventually destroy its own rollers. That is not the product’s fault. It is almost always an installation problem, and it is exactly why Westlight Windows Dallas treats every install as an engineering task, not a swap-out.

Our process starts with a pre-install inspection of the rough opening. We check the existing header, the floor condition, and the waterproofing plane before we touch anything. Then we set the frame level, plumb, and square, shimming at every anchor point and checking diagonal measurements before locking the frame down. The perimeter gets a full AAMA 812 low-expansion foam seal around every joint, which is the standard that prevents air and water infiltration at the frame-to-wall connection. The install is completed to AAMA 2400/2410 structural standards, which is the industry benchmark for proper fenestration anchoring. After the frame is set and the panels are in, we run a water test on the sill and adjust the rollers until the door glides with one hand.

Dallas-specific realities shape how we install. Our freeze-thaw cycles are mild compared to the north, but the real demands are expansion and contraction under summer heat and the occasional wind-driven rain event. We account for thermal movement at the anchor points so the frame can expand and contract without racking. And on homes in areas like Oak Cliff and the older Dallas neighborhoods, we check the structural framing before installation, because a 1970s opening was not always framed for a 24-foot span.

One thing every homeowner should know: the manufacturer warranty on the VLX 150 is valid only when the door is installed by an authorized ViewLux partner like Westlight Windows Dallas. An improper third-party install does not just risk leaks; it voids the warranty you paid for.

Frequently Asked Questions – VLX 150 Heavy-Duty Sliding Door

Get a Quote – VLX 150 Heavy-Duty Sliding Door in Dallas

The VLX 150 is a serious door, and it deserves a serious quote with real numbers, not a ballpark emailed from a website. Call Westlight Windows Dallas at (361) 441-0865 and let us measure your opening, walk you through glass and finish options in person, and build a fixed line-item proposal. We serve the entire Dallas metro. The estimate is free, and so is the advice.

Written by the team at Westlight Windows Dallas, serving Dallas, TX and the surrounding metro with premium aluminum window and door installations.
