VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Dallas, TX | Westlight Windows Dallas

The VLX 80 Fixed / Picture Window is built for one thing: putting as much glass between you and the outside as physically possible. There’s no sash, no crank, no visible hardware. Just a slim aluminum frame holding a massive pane that stretches up to 120 inches wide. In Dallas, where horizontal sightlines and natural light drive so much of modern home design, this window turns an ordinary wall into a living picture. Westlight Windows Dallas is an authorized ViewLux installation partner, which means you get manufacturer-backed workmanship plus local installers who understand how Dallas heat, wind, and building codes affect real-world performance. Call (361) 441-0865 for pricing and availability.

Call (361) 441-0865

How much does the VLX 80 Fixed / Picture Window cost in Dallas?

Product Overview – VLX 80 Fixed / Picture Window

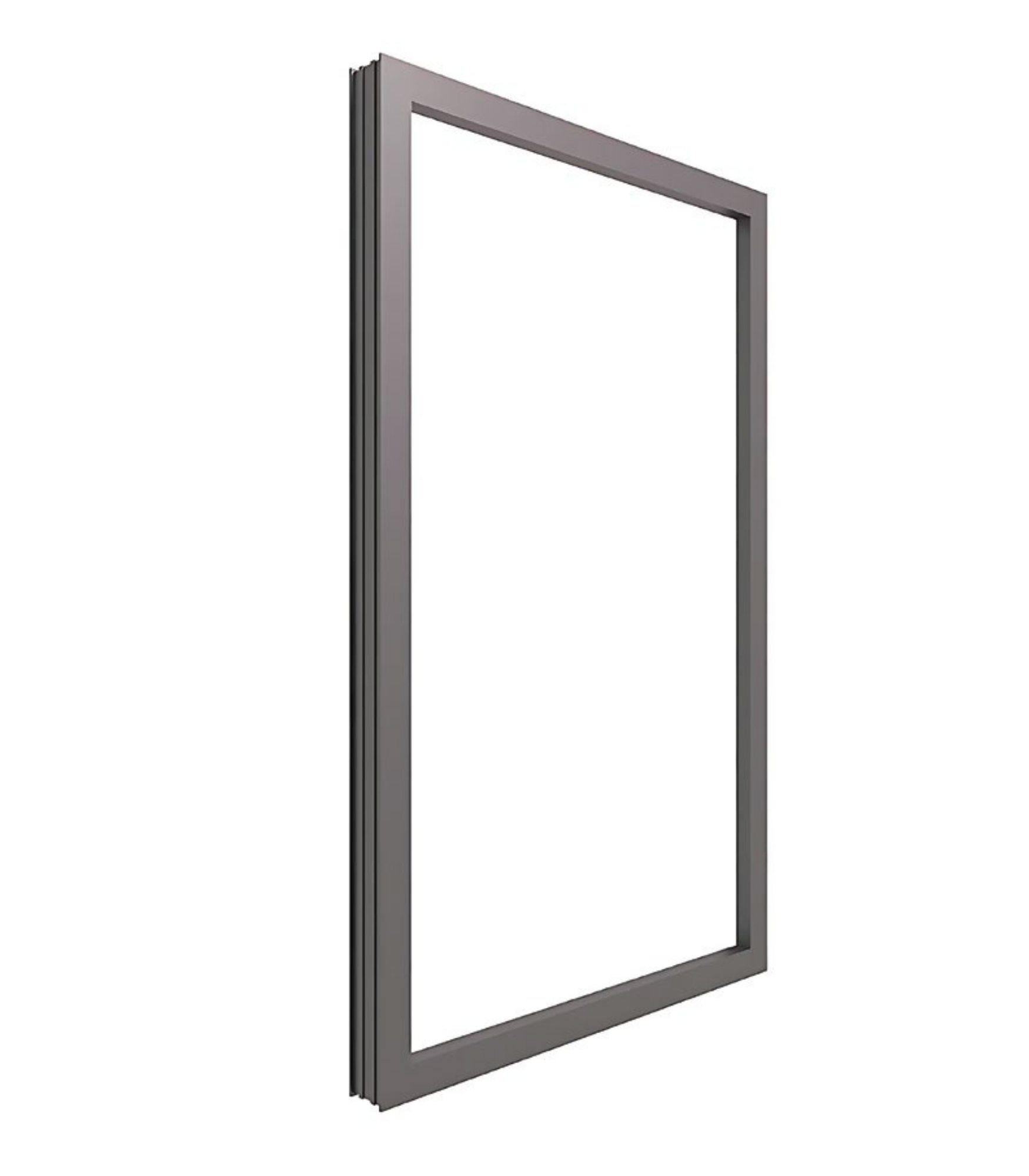

The VLX 80 is what architects reach for when the wall itself is supposed to disappear. It’s a fixed window, which means it never opens. That’s not a limitation. That’s the point. No moving parts means no weep holes, no sash tracks, no interlocks, and no hardware interrupting the view. The frame profile measures just 1.97 inches wide, which is remarkably slim for an aluminum system carrying a pane that can span ten feet. What you see from inside the room is almost entirely glass.

The frame itself is extruded aluminum with a wall thickness of 0.079 inches. That’s thicker than what you’ll find in entry-level aluminum windows, and it matters. Thicker walls resist deflection, keep the frame square, and hold the glass package securely during Dallas wind events and the seasonal expansion and contraction that comes with 100-degree summers followed by January cold snaps. The fixed design also eliminates the most common failure points in operable windows: worn seals, sagging sashes, failed balances, and hardware corrosion.

In practical Dallas terms, this window makes sense in living rooms facing a pool or backyard, stairwell landings where you want light but not airflow, home offices where a view keeps the space from feeling cramped, and any modern or mid-century remodel where clean lines matter more than ornament. Westlight Windows Dallas installs this series in single-family homes, townhomes, and a growing number of ADU and studio projects around the Dallas metro. We stock common sizes and order custom dimensions directly through the ViewLux supply chain, which keeps lead times predictable.

Technical Specifications

Before you fall in love with the look, it helps to know what you’re actually getting in engineering terms. Here’s the VLX 80 Fixed / Picture Window at the spec level, reworded from the manufacturer’s data sheets and verified through our own installs across Dallas:

• Frame material: Extruded aluminum, wall thickness of 0.079 inches
• Profile width: 1.97 inches (sightline measured from interior edge of the frame)
• Maximum width: Up to 120 inches wide, depending on glass package and wind-load calculations
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 foam sealant on all perimeter joints
• Thermal rating: NFRC-rated thermal break technology built into the frame system
• Wind resistance: Rated for Dallas-area wind-load requirements per local building code

One spec worth highlighting: the 120-inch maximum width. Very few aluminum picture windows in this price category offer that kind of horizontal span. In Dallas, we’ve used that capability on walls where owners originally assumed they’d need two or three separate windows butt-jointed together. With the VLX 80, one frame, one pane, one clean sightline.

How does the VLX 80 perform? Six features that matter in Dallas

Most window shoppers ask about looks first. But in Dallas, performance decides whether you’re comfortable in that room during August and whether your energy bill stays sane. Here’s what the VLX 80 delivers, grounded in the testing standards that actually count.

Thermal Efficiency. The VLX 80 frame carries a thermal break rated under NFRC protocols, which means the aluminum inside the house is physically separated from the aluminum outside by a non-conductive barrier. Without a thermal break, an aluminum frame becomes a radiator in a Dallas summer. With it, the frame stays close to interior temperature, and pairing it with Low-E glass cuts solar heat gain through the glass itself. Real-world result on installs we’ve done in East Dallas and Coppell: less afternoon thermal bleed around the window perimeter and noticeably cooler rooms on west-facing walls.

Acoustic Performance. Fixed windows have a natural advantage over operable ones: no air gaps means less sound transmission. The VLX 80 builds on that by letting you spec laminated glass, which dampens mid-range frequencies better than standard annealed glass. We’ve installed this combination in homes along Central Expressway, Mockingbird Lane, and near Dallas Love Field, where traffic and aircraft noise never quite go away. Clients consistently mention the difference in the first week.

Airtightness and Weather Seal. The VLX 80 uses a continuous foam perimeter seal, applied per AAMA 812, to close every joint between frame and rough opening. That’s not the builder-grade caulk smear you’ll find on cheaper installs. AAMA 812 low-expansion foam fills voids without distorting the frame, which is critical for long-term flexibility. In Dallas, where we swing from humid summers to dry winter air, that flexibility prevents seal failures that lead to drafts and dust intrusion.

Waterproofing. Water is the enemy of every window opening, and Dallas gets its share of driving rain and spring storms. The AAMA 2400/2410 installation standard we follow covers flashing, drainage, and sill pan requirements, and we add a final water test on every install before we caulk the interior trim. A failed water seal shows up months later as stained drywall or warped flooring, so we don’t treat this as optional.

Wind Resistance. The VLX 80 carries wind-load ratings that meet Dallas-area code for the heights and exposures common in our market. On larger spans, we verify the required glass thickness and frame reinforcement based on the specific wall exposure and building height. Spring storm season in North Texas brings gusts that would flex an under-spec frame or crack an undersized pane. Properly sized, the VLX 80 doesn’t move.

Security and Hardware. This window is a fixed pane, so the security math is simple: nobody opens it from outside because it doesn’t open. The frame, at 0.079-inch wall thickness, is strong enough to resist prying and deflection. If you want a step further, laminated glass holds together under impact rather than shattering, which is the same principle used in automotive windshields. For street-facing rooms or homes in neighborhoods that get occasional car and foot traffic, it’s a meaningful upgrade to ask about.

What colors and glass should you pick for a Dallas home?

Finish and glass are where you personalize the VLX 80. We’ll walk you through the options during your estimate, but here’s the ground-level view of what suits Dallas homes.

Finish options. Premium Black is a matte black that reads almost architectural on modern and transitional homes, and it’s the most common choice for floor-to-ceiling installs in Uptown and Knox-Henderson. Pure White fits traditional and craftsman homes where the window should blend into trim rather than stand apart. Anodized Silver is the practical, industrial pick, great for lofts and commercial-looking studios. Bronze and Champagne offer warm metallic tones that play well with mid-century and warm-neutral exteriors. Teak Wood mimics a warm wood grain and gets selected most often in older neighborhoods like Lakewood and Highland Park where owners want modern glass but don’t want to abandon the warmth of a classic exterior.

Glass options. Clear glass is the default, but rarely the best choice in Dallas heat. Low-E is what we recommend for south and west-facing walls: it reflects infrared heat while staying visually clear. Frosted works in bathrooms, entry sidelights, and any spot where you want light without a view. Tempered glass is code-required in certain locations like glass near doors or large panes close to the floor. Laminated glass adds impact resistance and sound dampening. Gray Tint and Black Tint cut glare and heat gain in rooms with intense afternoon sun, though they visibly darken the view. Most Dallas clients end up combining two of these: Low-E plus tempered for large living areas, or Low-E plus laminated for noise-heavy streets.

Installation by Westlight Windows Dallas in Dallas

We’ll be direct about this: a $2,000 window installed badly is a $2,000 problem. The VLX 80’s warranty from the manufacturer assumes professional installation, and improper setting, shimming, or sealing voids that protection. We’ve repaired windows from other installers in Dallas where the frame was out of square by a quarter inch and the owner was told that’s “normal.” It’s not. Not if you care about air leaks, water intrusion, or a glass pane under stress.

Our process starts with a pre-install inspection of the rough opening. We check for moisture damage, measure in three places for width and height, and verify the opening is within the frame’s tolerances before anything gets ordered. On install day, we remove the old window, repair or flash the opening as needed, and set the VLX 80 level, plumb, and square, shimmed so the frame is supported evenly along the sill and jamb. Then we apply AAMA 812 low-expansion foam around the full perimeter, which fills gaps without pushing the frame out of alignment as it cures. The install follows AAMA 2400/2410 for flashing and drainage, including a sill pan in any opening we don’t fully trust. After the exterior trim and sealant go in, we run a water test on the exterior joints and do a final interior inspection before we call the job done.

Dallas-specific factors come up on nearly every job. Our clay soils shift, which means houses move subtly over time. A rigidly sealed window with no flexibility in the perimeter joint will crack its sealant within a few years. The AAMA 812 foam we use is designed to move with the opening instead of fighting it. Roof overhangs and wall exposure also matter: a west-facing wall in a two-story house gets pounded by late-day sun and thunderstorm winds in a way a porch-shaded north wall doesn’t. We account for that when selecting sealants and glass packages.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in Dallas

You have the specs, the prices, and the honest guidance. The next step is a measurement at your place. We’ll send a Westlight Windows Dallas installer to your Dallas home, confirm your openings, help you pick glass and finish, and hand you a written line-item quote with no change orders hiding behind the fine print. Call (361) 441-0865 to schedule your free on-site estimate.

Written by the team at Westlight Windows Dallas, authorized ViewLux installation partners serving Dallas, TX and surrounding neighborhoods.
